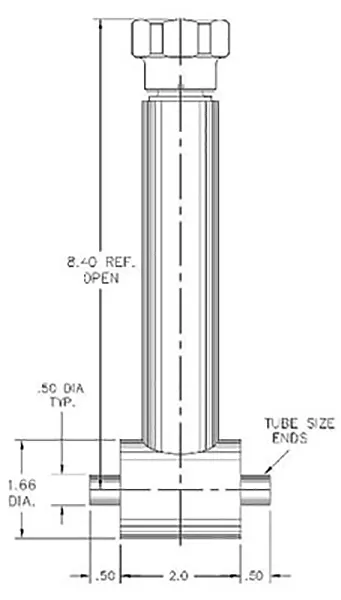

Cryogenic Valve Model C5041-M11

Cryogenic Valve Model C5041-M11

• 1/2" O.D. Tube Size Cryogenic Valve
• Manual Operation
• Vacuum Jacketed

Features

• Manual Operation (Actuators Available)
• Vacuum Tight Upper Seal Assembly
• Spring Loaded Dual O-ring Shaft Seal
• All Stainless Steel Body and Jackets
• Low Heat Transfer Stem Assembly
• MLI on Jacketed Valves
• KEL-F Seat Seal
• Contoured Flow Plugs Available

Technical Data

• 150 PSIG MAWP
• 225 PSIG Proof
• Heat Leak: 2.4 BTU/HR 77°K 3.1 BTU/HR To 4°K
• Cooldown Mass: 0.18 Pounds
• Seat Seal and Packing Leak Test Bubble Tight @ 150 PSIG @ Ambient Temperature
• Adapters Available For Smaller Sizes
• See P/N C1000KIT For Pneumatic Actuator Kit
• Designed For Vertical Operation Only
• Replaces Cryolab® CV9 Valve Series

Applications

• Vacuum Jacketed Piping
• Cold Boxes
• Cryogenic Piping Systems
