CPM WOLVERINE PROCTOR

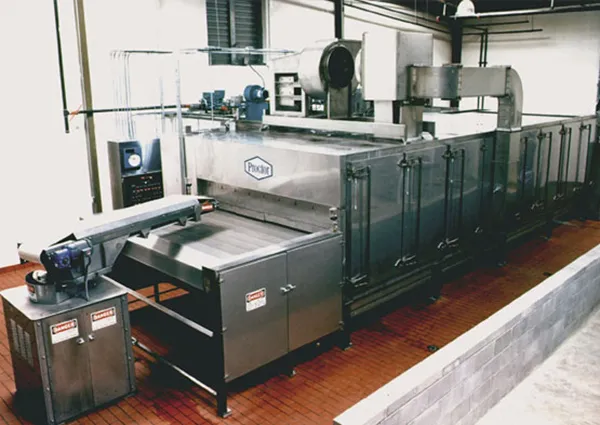

SCF SINGLE CONVEYOR DRYER-COOLER

The (SCF) Single Conveyor Dryer/Cooler offered by CPM Wolverine Proctor is the most widely used continuous dryer in the world, and for a good reason. It’s the result of years of production experience, bringing together carefully selected fans, heating systems, conveyors, chain panels, and other equipment to meet your production needs. Whether it is a two-foot-wide (0.6m) unit drying an expensive pharmaceutical product or a 14-foot, 6-inch-wide (4.4m) machine producing product at a rate of 100,000 pounds per shift, you can rely on CPM Wolverine Proctor’s (SCF) Single Conveyor Dryer/Cooler for maximum efficiency at each point of your heating and drying process.

FEATURES & BENEFITS

• Maximum Uniformity: Multi-zone temperature control, adjustable airflow volumes and humidity control provides the highest thermal efficiency and gentle drying conditions, preventing product degradation
• Uniformity: Airflow and temperature profiling results in unequalled final product uniformity
• Flexible: The decision to use up or down airflow (or both), product cooling, conveyor design and selection of heating systems is based on product and process needs
• Versatility: Choice of heating systems includes steam, direct or indirect natural or LP gas, electric, thermal oil, and geothermal water
• Control: Temperature control systems range from simple on-off indicating controls to the most sophisticated menu-driven PLC instruments controlling the dryer and other units in the line
• Efficient: Self-supporting, segmented, positively driven conveyors are supplied with perforations designed to minimize sifting and increase time between cleanings
• Minimal Loss: Integral guards positively contain the product, minimizing loss while maintaining proper airflow through the product
• Maintainability: The conveyor returns outside the drying chamber for ease of cleaning. Integral coolers, if required, stop the drying or roasting process very quickly and discharge products at close to ambient temperatures
• Fast Installation Time: Preassembly in Wolverine Proctor’s workshops assures ease of field assembly and minimizes installation time
• Low Cost: Lower-cost minimal pre-assembly shipments can also be supplied to reduce costs for individual country and shipping requirements
