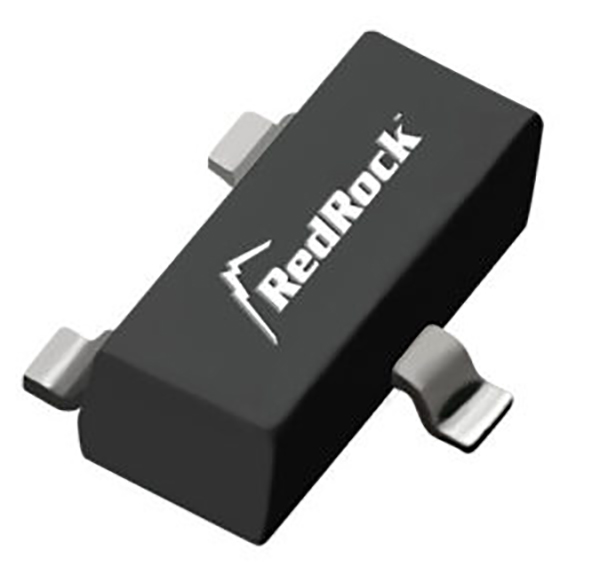

RR122-1F22-511 & RR122-1F23-511 TMR DIGITAL PUSH-PULL MAGNETIC SENSOR

RR122-1F22-511 & RR122-1F23-511 TMR DIGITAL PUSH-PULL MAGNETIC SENSOR

The RedRock® RR122-1F22-511 and RR122-1F23-511 are digital TMR magnetic sensors ideal for use in medical, industrial, automotive, and consumer applications. They are based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration. Short lead times are making RedRock® RR122 TMR Magnetic Sensors a popular replacement alternative for hard-to-get Hall Effect Sensors and Reed Switches.

RR122-1F22-511 & RR122-1F23-511 Series Features

• Operate sensitivity of 70 G
• Ultra Low Power Consumption < 100 nA
• Wide Supply Voltage range of 1.7V – 5.5V
• Omnipolar Push-Pull Response
• Operating Frequency of 10 Hz
• Temperature Rated up to 125°C
• RoHS & REACH Compliant
