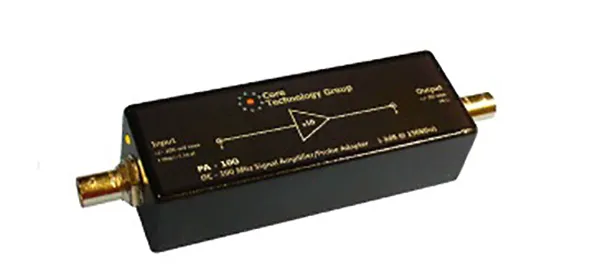

PA-100 Signal Amplifier-Probe Adapter

PA-100 Signal Amplifier-Probe Adapter

The PA-100 is a wide band oscilloscope probe amplifier and general purpose signal conditioner featuring:

• 1Meg Ω||12pf, input impedance (just like an oscilloscope)

• Fixed gain of 10 V/V

• DC-100 Mhz bandwidth

• 50 Ω output drive capability

The PA-100 can:

• Boost signal loss from 10x passive probes, maintaining high bandwidth

• Drive 50Ω instruments like spectrum analzyers (EMC and noise probing)

• Buffer high impedance signals

• Amplify and condtion signals for data acquisition systems

• Pre-amplify small signals for evaluating sensorsDrive 50 Ω BNC cables, and more

The PA-100 is flexible enough for use in the lab, in the field or as a permanent component integrated into a test or data acquisition system signal chain.

The PA-100 requires an external +/- 15 VDC regulated power supply or our PC-15-BP15, 15 Volt Bi-Polar Power Converter, available separately.
