Module Type Package Suite

Module Type Package Suite

As an idea, MTP can be compared with a printer driver. The printer (a subsystem) is connected to a central computer independent of the manufacturer. The aim is to make connecting the device as simple as possible to enable it to be used without delay. The computer can easily access the services “print” or “scan”. Similarly, the POL detects the available services of the individual modules via MTPS and can access them directly. “Plug and print” becomes “plug and produce” in factory automation and process engineering – after all, digitalization can be easy even on a larger scale!

The zenon MTP Suite from COPA-DATA provides all the services you need to implement end-to-end modular production. Optimize existing production processes in your business and benefit from agile manufacturing that meets all the relevant standards.

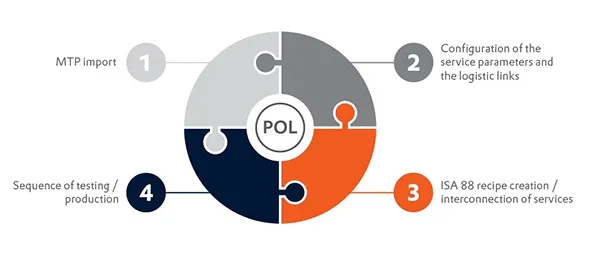

• Each MTP file is a template for a specific piece of equipment. If you have several of the same type, multiple instances can be created from the template using the service for managing process equipment assembly (PEA) instances.
• In the Process Orchestration (POL) step, users link up the newly generated PEA instances and logically connect the equipment via drag & drop in a graphics editor. All process images, variables, basic functions for ISA 88 batch control, the OPC UA configuration, reports, alarms and audit trails are generated automatically at the push of a button.
• With the PEA Software Suite, COPA-DATA provides operators with a local control system directly on the machine. A state-of-the-art, user-friendly HMI – including features such as ISA-88 batch control, user management and audit trails – enables operators to manage processes securely and ergonomically. The application also ensures data integrity in accordance with FDA 21 CFR Part 11 and Annex 11 of the EU GMP guidelines.
• If legacy equipment needs to be made MTP-compatible when setting up modular production, the MTP Gateway can help. It connects the legacy systems and sends the relevant information to orchestration via OPC UA and in accordance with MTP standards. This ensures users remain manufacturer-independent and can choose the machines and software solutions that best meet their needs.
