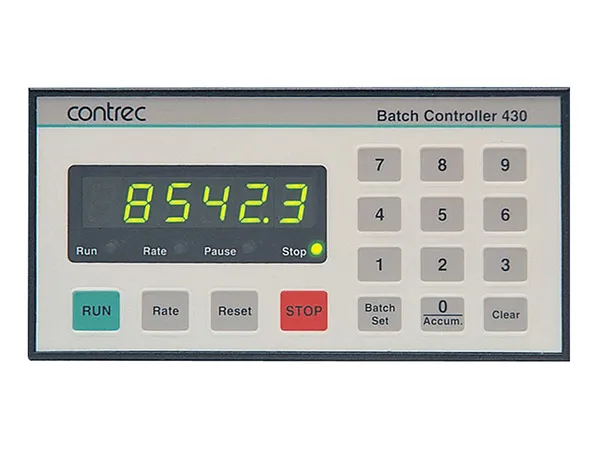

Contrec 430D

Contrec 430D

The 430D Batch Controller is suited to applications where precise measurement and control of variable batch quantities is required.

The instrument is extremely flexible and easy to operate. Batches can be started, paused, stopped and reset via four operational keys and batch quantities and calibration parameters are entered via a 12 key numeric keypad.

Batch Total, Flow Rate, Accumulated Total and Preset Value can all be displayed in engineering units on the green LED display.

The 430D will accept most frequency and pulse signals, including mV outputs from turbine flowmeters, and two-wire proximity switch outputs.

Features

• Accepts pulse and frequency flow signals
• Scaled pulse output
• Overrun compensation
• One or two stage valve control
• Optional RS232/422/485 interfaces for computers and printers
• Remote start/stop
• No-signal alarm
• Ticket printing with time and date
• Displays batch total, preset quantity, flow rate and accumulated total
