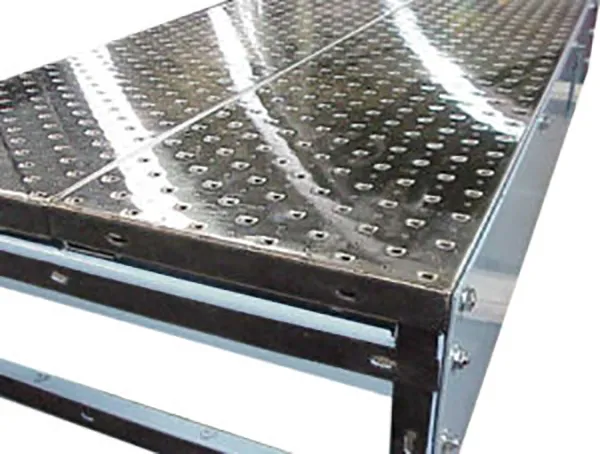

Air Deck Conveyor

Air Deck Conveyor

Air deck conveyor systems offer a low line pressure method of conveying delicate containers. Ideal for empty aluminum beverage cans, oblong plastic containers, plastic lids, small boxes and various other containers.

CHSC air deck allows containers to travel on a layer of air by lifting the containers with a designed pattern of small lifting holes. They are then propelled by directional louvers designed for specific applications. Perforated top covers with reinforced framing control the containers while allowing air to escape, not impeding the container flow. Air covers have optional tool-less pneumatic assemblies for multiple height containers.Air deck conveyors are fabricated with stainless steel louvered air decks and perforated top covers with conveyor frames available in stainless steel and painted carbon steel.Conveyor widths vary from single lane to 60” wide standard frames and beyond for special applications. Accessories such as floor supports, side rails and brackets used with the air deck conveyor system are identical to those used with CHSC table top and mat chain conveyors.The air deck conveyor system is complimented with CHSC designed single filers for aluminum beverage and steel food cans. Custom designed for applications to meet any filling line.
