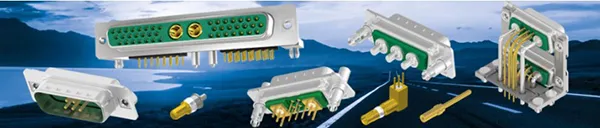

D-SUB Combination connectors

D-SUB Combination connectors offer the possibility to equip a proven design with new functionality.

This is done by using different contact types without having to change the shape, size and installation dimensions of the connector itself. By using high-current contacts, the power supply of the device can be realized without an additional interface for the power supply. High-voltage contacts allow operating voltages of up to 2.8 kV.

Fast signal transmission over shielded coaxial lines is achieved with the use of special coaxial contacts. A choice can be made between the Combination D-SUB, Combination D-SUB High Density and Combination D-SUB Dual Port series.
