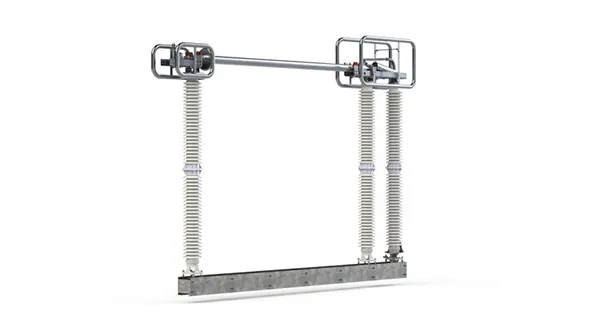

Southern States’ latest innovation, the EV-2H, supports reliability through its unique design. This heavy duty, highly efficient vertical break disconnect switch utilizes independent mechanical and electrical systems to produce the strongest possible design with the easiest accessible maintenance. An over toggle mechanism in both open and closed positions prevents the possibility for the blade to close in extreme weather and increases down force for high fault performance. Metal encased coil spring counterbalances reduce operating effort, are impervious to weather, and prevent catastrophic failure that is possible with linear springs. Using an all stainless steel bearing also ensures a long life in all operating conditions.
Maximum Voltage: 15.5 kV – 800 kV
Continuous Current: 2000 A – 4000 A
