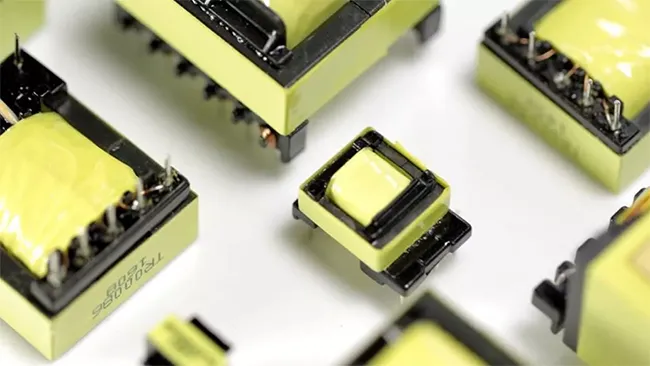

Precision Switchmode Transformers
Features
Horizontal or vertical design THM (through hole mounting) SMD (surface mounted design) or
sub-miniature transformers
Potted or vacuum impregnated
Insulation Class F or H
Safe separation due to reinforced insulated wires or potting
Proof-voltage: up to AC 5000V potted or vacuum impregnated
Supplied in blister belt or tube packaging
Crimped flying leads
1, 2 up to 5 chambers, Shielded and Unshielded bobbin design
With high frequency litz and foil winding
With Electrostatic screening (shield) between the coils
Optional
Material, on request, in accordance with UL94 V-0
Additional copper foils
Extended creepage, clearance version on requests, DTI for reinforced insulation
Applications
Emergency, Street and Industrial (Induction, LED and HID) lighting systems, Industrial power supplies
(Automation), Digital Logic Circuits, Telecommunications Circuits, Electrical Low Power Distribution
and Protection, Alongside Power Semiconductors, Radar Applications, Particle Accelerators,
Metering, and Triac, Mining applications, Home Appliances, Wideband, Battery Charger, Drive
transformers, Pulse, Portable Equipment MPS, Power Supplies of IT sets, Displays, Switching
Supplies and Navigation.
Standards
EN61558, EN60950, VDE, ENEC, UL
