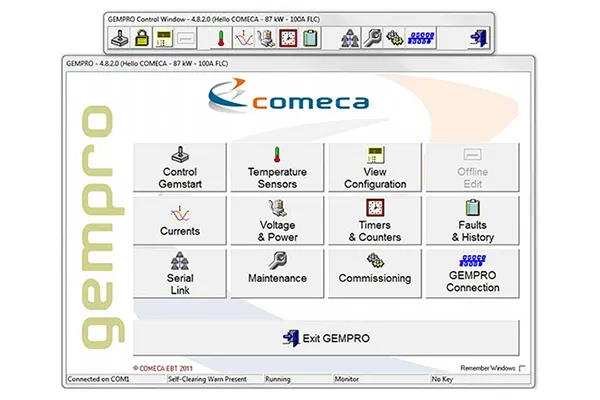

GEMPRO SOFTWARE

GEMPRO SOFTWARE

GemPro is the software used to configure, to monitor and to control the GemStart5 numerical thermal protection relay. GemPro is compatible with standard PC with Windows® 7, 8 or 10 operating system.

Connection to the GemSart5 is via a standard RS232 direct cable on the LCD front face SUB-D9 pin connector.

Selecting the appropriate typical schematic based on the final application :

• DOL-E, direct start,
• DOL-E, direct start, forward and reverse
• STAR/DELTA
• DOL-L, direct start with latched contactor
• Motor operated valve
• Two speed, low start only
• Two speed
• Two speed Dahlander
• MCCB
• VSD control only
• Cut Throat VSD control only

Electrical protection setting:

Each of the LV or HV motor electrical protections associated with the selected typical schematic can be enabled or disabled, particularly during start-up and also during steady state.

Selecting the communication protocol:

• Gembus ( (proprietary communication protocol)
• Modbus RTU
• Profibus DPV1

Human Machine Interface:

• Define the configuration editor language in one click
• Define the language of the  display of the GemStart5 in one click
• Download other language
• Gemstart5 firmware update facilities
