JAKA 5

JAKA 5

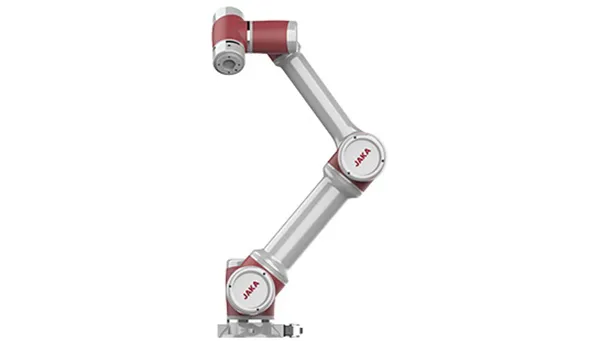

JAKA Zu 5 Cobot

Product Features:

  • Weight is 23kg, payload is 5kg, work radius is 954mm;
  • Integral joints designed, make the robot easy to build and also to tear apart;
  • Small and light, can adapt to small space installation, high precision density requirements of handling and assembly work;
  • No need of any safety fences, JAKA Zu 5 can realize tri-co interactions with operators, other robots and working environments.

Product Parameters

Specifications

Rated power

350W

Temperature range

0-50℃

IP Specification

IP54

Installation

Installation at any angle

Tool I/O

Digital input 2/Digital output 2/Analog input 1

Tool I/O power

24V

Base diameter

129mm

Material

Aluminum, PC

Tool I/O size

M8

Cable length

6m

Package Size

460×375×365(mm)(L×W×H)

Characters

Payload

5kg

Weight (W cable)

23kg

Work radius

954mm

Repeatability

±0.02mm

Axis

6

Programming

Graphical programming, Free-drive

Teach pendant

MT(PAD/Mobile)APP

Collaborative operation

In compliance with GB 11291.1-2011

Certificate

CR, CE, 15066
