Cleanroom crane

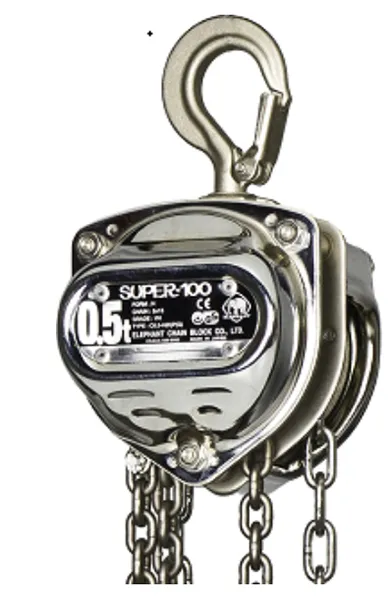

PIHH100 Cleanroom hand chain hoist

Standard delivery:

• 3 meters lifting height (max. between top and bottom hook).
• 2.5 meters operating height.

Options:

• Available in any other lifting and operational heights.
• By using Stainless steel load- and hand chain, they can be used in food industry.

Norm:

• EN12100-1/2, EN13157, EN818-7
• Marking: According to standard, CE-marked
• Standard: EN 13157, EN 818-7
• With EKH Certificate

Type:

PIH/H100-500KG-3M                   WLL. 0,5 t. Lifting  height 3 m      Construction height 277 mm                  Weight 10 kg      Hand force max. 22 kg

PIH/H100-1000KG-3M                 WLL. 1 t. /Lifting  height 3 m        Construction height 303 mm                  Weight 13 kg      Hand force max. 25,5 kg

PIH/H100-2000KG-3M                 WLL. 2 t. Lifting  height 3 m         Construction height 379 mm                  Weight 22 kg      Hand force max. 34 kg

Specifications

• Cover chrome-plated.
• Side plates nickel plated.

Top and bottom hooks nickel plated and have safety latches.

• In case of overload, the hooks will gradually bend and do not suddenly break off.
• Nuts and base discs of stainless steel.
• Hand chain made of stainless steel.
• Load chain nickel plated.
• Number of falls.

Service

The after-sales department of Cleanroom Cranes provides reliable service worldwide.

• Delivery of all required spare parts for both preventative and corrective maintenance.
• Development of a suitable maintenance & inspection program according the local and international regulations.
• Development of a proper maintenance & inspection program including the stock of operational spare-parts will prevent unexpected downtime of the crane.
• Personal training on product usage.
