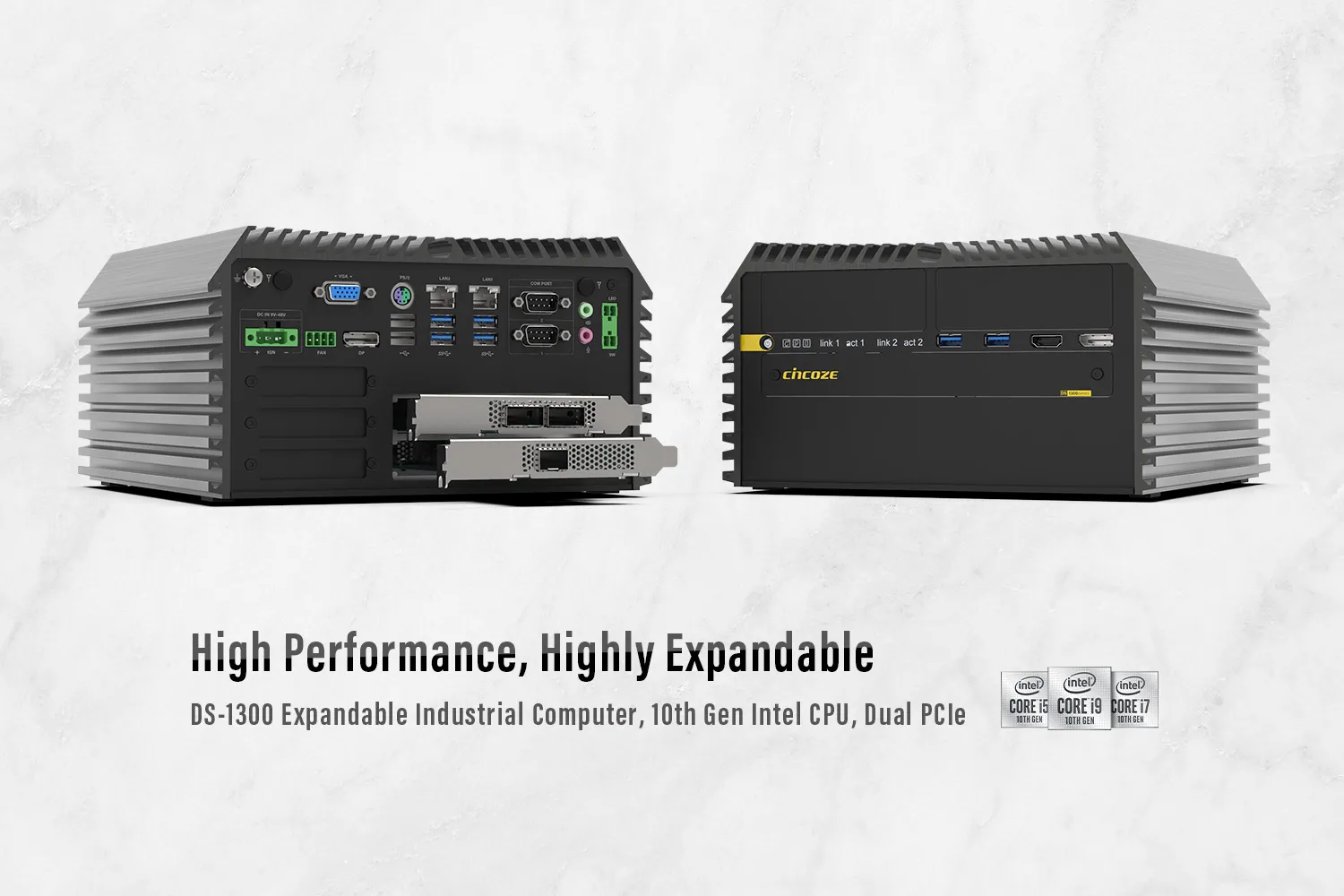

DS-1300 Series │ Extreme Performance & Expandable Fanless Computer
DS-1300 Series │ Extreme Performance & Expandable Fanless Computer
The DS-1300 is a powerful embedded computer and brings unrivalled performance. It has versatile functionalities and rich industrial I/O. Equipped with Cincoze’s CMI, CFM, MEC modular expansion, customization for additional I/O or other functionality to fulfill different applications couldn’t be easier. The DS-1300 meets the requirements of industrial environments and is certified with industry standards. It delivers ultimate and reliable performance for factory automation, industrial automation and rolling stock applications.
Generation CPU Performance Leap
The DS-1300 series can support a 10th generation Intel® Xeon®/CoreTM (Comet Lake-S) CPU, up to 10-core 80 W, representing a 31% performance increase for multitasking compute-intensive applications. It supports two sets of DDR4 SO-DIMM for a total of 64 GB, and storage options include a set of high-speed M.2 NVMe storage slots, three sets of mSATA slots, and two sets of 2.5" hard drive trays. One set of drive trays is arranged in the front maintenance area for emergency access, providing fast storage and convenient repairs. Cincoze’s unique fanless design ensures smooth operation in normal temperature conditions and supports an external fan to enhance cooling in more challenging situations.
Flexible PCI and PCIe Expansion
The DS-1300 series supports up to two PCI/PCIe expansion slots, a 110 W power supply capacity, and can be connected to various commercially available high-speed I/O cards, image capture cards, motion control cards, or GPU cards. In order to strengthen the stability of the expansion card, Cincoze's patented "Adjustable PCIe Retainer" utilizes a two-stage precision adjustment mechanism that can be tightly adjusted and strengthened according to the size of the external card (up to 235 mm x 111 mm), providing reliable support under high-vibration environments, and maintaining safe and reliable continuous operation at the site.
Modular Design Freedom
The DS-1300 series has an array of native high-speed I/O, including 2x GbE LAN, 2x COM, 6x USB3.2, 2x USB2.0, and more. It can also be used with Cincoze's modular design CMI, MEC, and CFM, for additional functions. CMI and MEC provide up to 12x GbE LAN, 2x 10GbE LAN, 32x Digital I/O, 8x M12, 4x COM, or 4x USB3.2. CFM modules can add power ignition sensing and PoE functions. In addition, there’s a built-in MiniPCIe expansion slot that supports commercially available Wifi/4G/GPS modules—just install the card, plug in up to two SIM cards, and it’s ready to go.
Tough and Rigorous Military Standards
In order to provide ever more trustworthy products, Cincoze continuously improves its self-requirements. The full DS-1300 range is certified against shock and vibration, adhering to the stringent MIL-STD-810G military equipment standard. It also meets the specifications of rail standard EN 50155 (EN 50121-3-2 only) and maintains the tough design of the rest of the DIAMOND series. It supports wide operating temperature (-40 to 70℃), wide voltage input range (9–48VDC), and boasts overvoltage, overcurrent, and electrostatic discharge protection. Together, these mechanisms provide the most stable and reliable core for edge computing in field-side applications.
