Chemineer, Inc.

Chemineer, Inc.

5870 Poe Ave. Dayton, Ohio 45414 USA

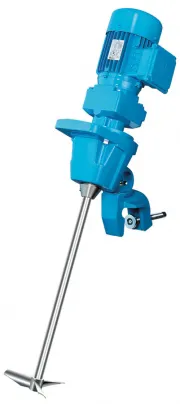

XPRESS MIXERS

XPRESS MIXERS

XPRESS MIXERS

  • 72-hour delivery

  • 30-day “No Risk Trial”

  • Total support for your mixing need

  • 50+ years experience in mixer technology

  • Industry standard IEC, off-theshelf motors from 0.18 to 1.5kw Features and Benefits Motors: Direct drive

MODELS

10XPB, 10XPC & 30XPC; Industry standard, off-the-shelf, IEC electric or air motors.

GEARMOTORS

Gear-reduced Model 40XPC; Low maintenance integral motor/gear drive offers 290 rpm nominal output speed.

CAST HANDLE

Integral cast aluminum handle for easy manoeuvrability and positioning.

MOUNT

High-strength cast aluminium C-clamp or cup plate mount offers 3-dimensional positioning with positive lock adjustability. Bung-mount mixer designed to fit all 2" NPT drum openings also available.

SHAFT

Rugged, heavy-duty shafting manufactured from 316L SS. 16mm or 25mm diameter shafting straightened to 0.16mm per metre to reduce vibration and extend unit life. Shaft lengths to 2500mm.

IMPELLER

A high-efficiency impeller (JF-3) or propeller (JP-3) is standard depending on model. The bung-mount mixer, 10XPB, is available with a 100mm or 127mm collapsible propeller.
