CONTINUOUS MOTION MULTIPLE PIECE ASSEMBLY MACHINE

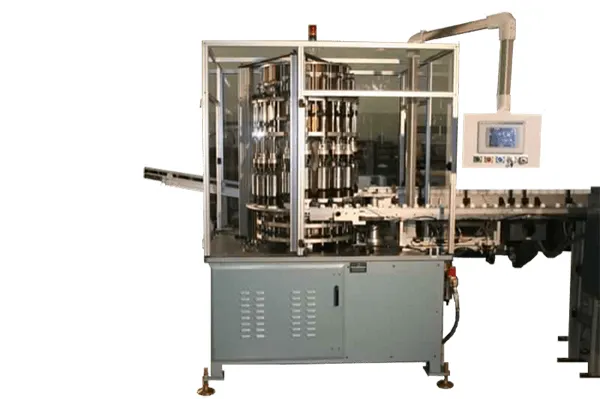

The Continuous Motion Multiple Piece Assembly Machine is a self-contained unit, featuring feeder bowls, and inline tracks. The machine is configured with multiple continuously rotating dials, mounted horizontally to transfer the product through the assembly, testing and inspection processes.

The machines include the following standard features:

• Feeder bowls to orient product.
• In line tracks to feed product to the continuous motion dials.
• The machines can be configured with upper, lower and horizontal cam driven tooling.
• The lower dial tooling can be equipped with cam driven spindles with tooling.
• An outer cam will allow each spindle to move up and perform an operation.
• The upper tooling dial can be equipped with cam driven spindles with tooling.
• Shift register tracking system will monitor good and bad parts thru the system.
• Touch screen type operator control panel with message display to indicate functionality and spindle monitoring.
• If the product fails any test or inspection, the product will be designated as a reject and removed from the dial.
• A fixed cam will divert completed assemblies to an eject chute equipped with a pneumatically operated box diverter.
• An air blow will remove rejects from the dial and blow them into a reject chute.

The machine is constructed with station tooling mounted to a ground steel top plate supported by a fabricated steel base. Mechanical drive, pneumatics, and electrical equipment are all hard mounted to the base. Machine components are black oxide, anodized, plated, or painted as necessary. All painted components will be painted with an oil base machinery enamel. Perimeter guarding consists of polycarbonate panels this protects your employees from pinch points and rotating areas.
