CLCS FlexFast™ Lite

CLCS FlexFast™ Lite

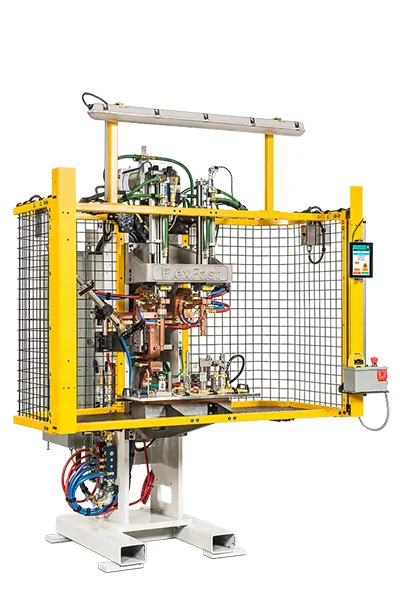

The CenterLine CLCS FlexFast™ Lite configured stationary welder is a compact, versatile, welding machine designed for production fastener welding applications. This design includes many standard features that ensure the FlexFast Lite produces consistent weld quality, is easily operated, and has minimal maintenance requirements.

CLCS FlexFast™ Lite

The smart fastener welding solution.

The CLCS FlexFast™ Lite offers:

• Exceptional part quality at a competitive cost
• Solid construction, capable of welding fasteners up to 13.3kN (3000 lbs) weld force
• Ability to weld up to M10 sized fasteners - application/fastener dependent
• One (1) or two (2) OHMA™ air/oil weld actuator(s) with configurable fixed spacing
      • Low impact, “soft-touch” operation to minimize electrode wear, deflection and part deformation. This promotes higher quality welding and lower maintenance needs.
      • Four schedules available per cylinder
      • Accurate control over weld forces over a wide range of air pressure settings
• Interchangeable lower tooling enables rapid changeover for multi-application needs

CLCS HMI Features

• Reduced cost compared to a PLC and standard HMI while maintaining high quality and safety
• Wi-Fi “over-the-air” updates for firmware, if required
• No PLC programming required, equipped with controller and HMI pre-programmed functionality
• No software license fees required
• Upper and lower electrode weld counters for maintenance notifications
• Weld control, with discrete interface
• Dynamic high resolution touch screen
• Discrete control of up-to 2 feeders
• Active in-process weld monitoring
