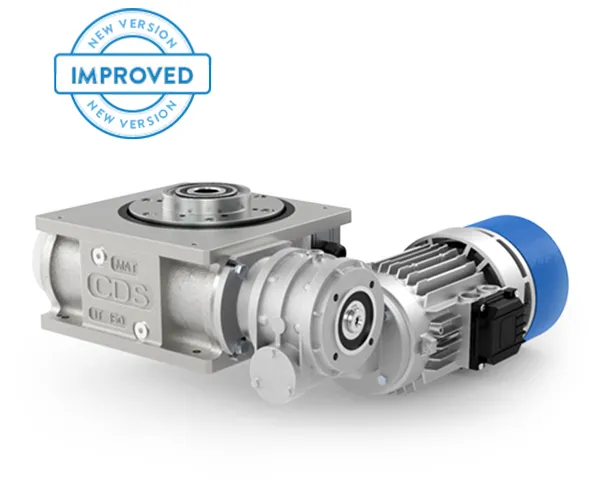

ITP Series STANDARD PACKAGE TABLES

The ITP Series are the package version of the IT Rotary Tables. They are equipped with a gearbox and three-phase induction motor for a shorter lead time and fast delivery to meet customer requirements.

The IT Rotary Table series are available for fixed. This series is the perfect solution for application with high inertia and medium unbalanced loads.

The 'friction followers' technology inside ensures a vibration-free and backlash-freerotation at high speed, high positioning accuracy and a maintenance-free long life. The Series is the Rotary Table common platform for any application.

 The high competitive price and fast lead time together with CDS quality and reliability make this series very attractive for the market.

Technical specifications

• Sizes: ITP75 - ITP100 - ITP150 - ITP200 - ITP300
• Number of Stops: from 2 to 12
• Index Angle: from 300° a 330°
• Dynamic capacity: from 10 a 5500+ Nm
• Output motion axis bearings- Max Axial Force: from 1000 to 45000 N- Tilting: from 10 to 650 Nm
• Central Hole: from 9.8 to 59.8 mm
• Torque limiting joint optional output rephasing device
