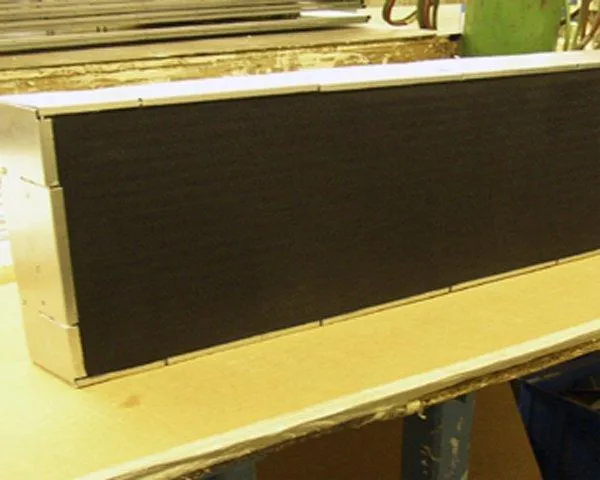

Type FB Heater
Type FB Heater
The Casso-Solar Technologies’ Infrared Heater Type “FB” is a medium wavelength infrared heater with a woven quartz cloth surface that is finished with a black ceramic coating for high emissivity. The quartz face has the properties of being transparent to the infrared energy generated within the heater module, providing maximum heat transfer efficiency over the usable wavelengths of 2.5-6.0 microns. This corresponds to emitter temperatures of up to 1600°F (880°C) and 25 watts per square inch (3.9 watts per square centimeter).
Our Type FB infrared heaters are available in a wide range of standard sizes with custom designs available upon request. A variety of voltages are available are available on Type FB infrared heaters, including but not limited to: 120V, 220V, 240V, 380V, 480V, 575V, and 600V. These flat panel infrared heaters provide a wide degree of flexibility as they can be used as standalone heaters or as part of a larger array. If necessary, a single module can also be built with multiple zones that are independently controlled.
Special Features
- Operating Environment Up To 1600F
- Energy Watt Densities To 25 WSI
- High Efficiency
- Multiple Zone Capability
- Modular Construction
- Flexible Design
- Extended Life
Standard Size Heaters
The “FB” heater is available in all the standard sizes listed in the configuration table below plus 12" x 72". Standard heaters are 3” deep, plus mounting studs. Additional standard wattages include 5, 10 and 20 watts per square inch; additional voltages include 575/600 volts. Heaters are not normally kept in stock.
Special Size Heaters
The “FB” heater can be custom designed in size, wattage, voltage and mounting configuration to system specifications. These Maximum watt density is 25 watts per square inch, maximum voltage is 600 volts.
