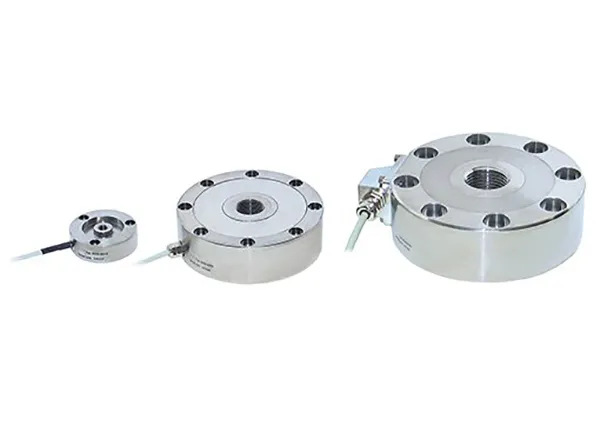

Load cells-8524

Load cells-8524

compact, uncomplicated, universally applicable, easy integration into existing structures, for static, quasi-static and dynamic tensile and compressive forces, stainless steel, overload stop (option)

FEATURES

• Measuring ranges from 0 ... 500 N to 0 ... 200 kN
• Relative non-linearity: ≤ ±0.1 % F.S.
• Output signal 1.5 mV/V, standardized
• Highly versatile and for universal use
• Type of protection acc. EN 60529 IP67 for measuring ranges ≥ 0 ... 20 kN
• Cable suitable for drag chains and highly flexible
• burster TEDS optionally available
