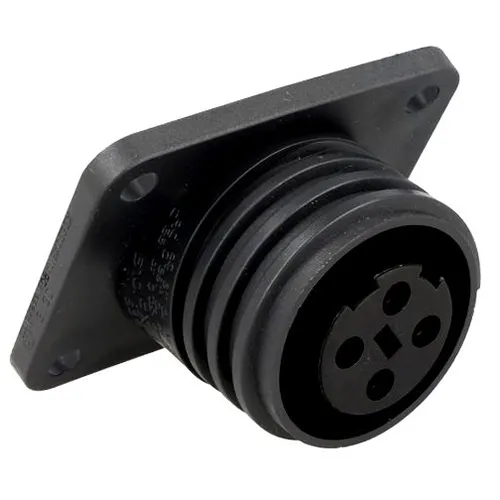

Flange Mount Connector — PX0941 Series
Water and dustproof to IP68 when mated with compatible connector
Positive fast-acting locking ring - can be turned with a gloved hand
Plug or Socket
2, 3, 4, 5, 7, 10 Pole with leading Earth on 3, 4, 5, 7 Pole versions, trailing Neutral on 5 Pole version
Supplied with high grade sealing gasket
Supplied with sealing grommets for panel fixing screws (M6 thread recommended)
Additional Bulkhead Adaptor Moulding available separately (PX0950) to enable connector angle of 45 or 90 degrees
PX0970/PX0992 Sealing Cap available separately to maintain IP rating of unmated connectors
Mate with PX0911 and PXA911 Series Flex Connectors
