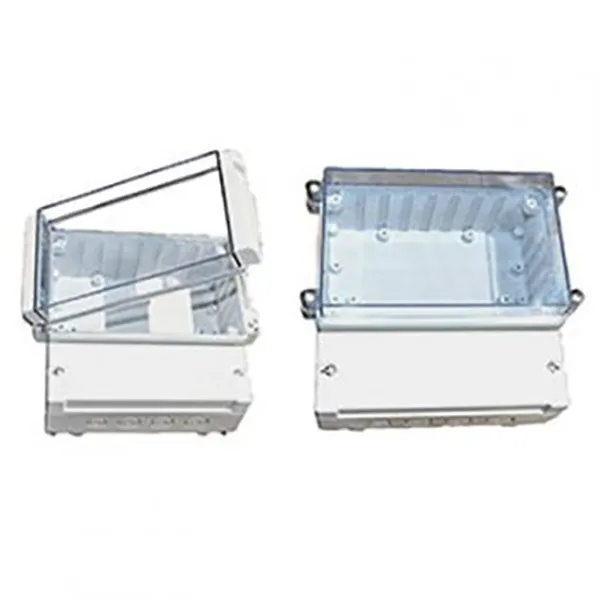

DCH Series Dual Compartment Enclosure
DCH Series Dual Compartment Enclosure
- Dual compartment design. PCB guides provided in upper compartment.
- Transparent cover allows inspection and readout without breaking seal.
- Hinged cover allows easy access (left- or right-side hinge). For screw-down cover see DCS Series.
- Cover made of blue tinted polycarbonate (UL 94-HB) plastic (higher flammability rated material available on special request).
- Body made of high-impact ABS plastic.
- Easy-to-remove knockouts provided on bottom side to accommodate conduit fittings or cable glands.
- Sealed with durable and oil-resistant silicone sponge gasket.
- Built-in DIN-rail mounting clips.
External Size H x W x D: 6.34" x 6.54" x 3.66"
Internal Size H x W x D : 3.79" x 6.14" x 3.47"
Weight: 0.3 lbs
Color: Clear Blue-Tinted Cover / White Body
RoHS Certified: Always Compliant
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: Transparent Blue Polycarbonate
UL Rating: UL508
Gasket Type: Silicone Sponge
Service Temperature Min: -40°C
Service Temperature Max: 70°C
IP Rating: 65
Mounting Style: DIN Rail
Knockouts: Knockouts
