P9680 Overcurrent and Earth Fault detection

Overcurrent and Earth Fault detection (IDMT)

6 Selectable IDMT curves

Programmable Low-set and High-set tripping

LCD with live display of currents

Last trip memory/history recall

Pre-defined selectable CT ratio’s

Test and Reset buttons

96 x 96mm, Panel Mount

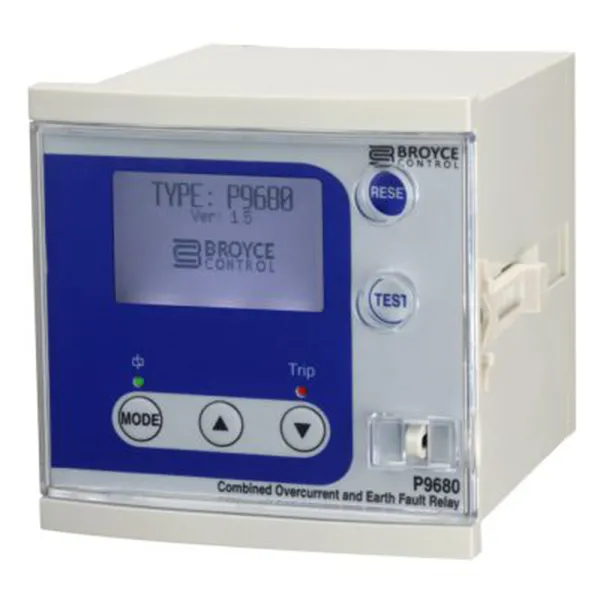

Fully programmable and easy to set-up digital relay that offers the user the ability to monitor and detect Overcurrent and Earth Fault conditions. The user is able to choose from 6 tripping characteristics curves for use on both Overcurrent and Earth fault detection or alternatively, assign a Definite Time. Two relay outputs can be individually assigned to either Overcurrent and/or Earth Fault tripping and set for Manual or Auto-resetting.

A clear, backlit LCD provides all key information the user requires for both operation and setting up.

An auxiliary supply (required to power the unit) must be present for the product to function.
