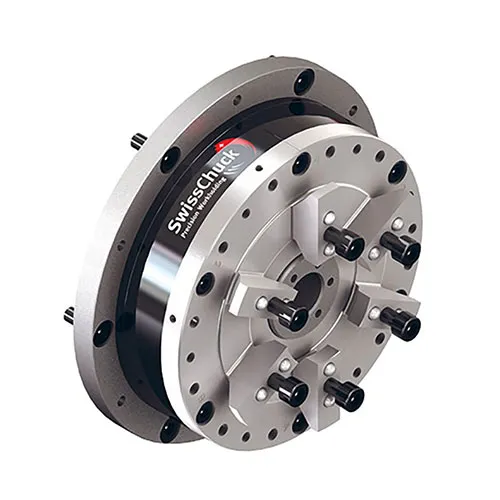

Precision Diaphragm Chuck: VMCHP

The pneumatically actuated diaphragm chuck family 6VMCHP guarantees clamping of workpieces at the highest level of precision and delivers a repeatability of ≤ 0.002 mm. The pull-back effect of the diaphragm means that workpieces are pulled back against the end-stop, which ensures that tight linear tolerances can be maintained reliably during the whole manufacturing process.

Features and Benefits

• High precision ≤ 0.002 mm

• Opening stroke suitable for automatic loading

• Axial end-stop mounted directly on chuck body offering absolute stability

• Coolant supply via central bore (through hole)

• Precision interfaces for top jaws; no need for regrinding the clamping section
