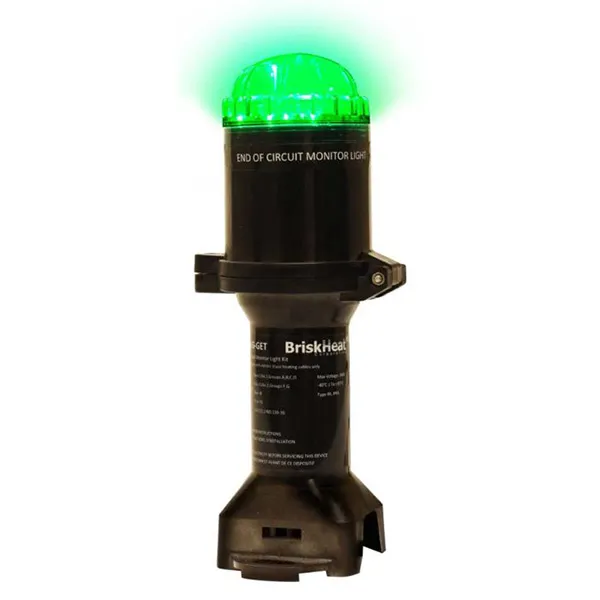

End of circuit monitor

End of circuit monitor

Description

End of circuit monitor light kit. Red or Green LEDS are available, Includes 6 in (152 mm) pipe strap and adapter for small diameter pipe installations. Coldapplied materials do not require heat gun, torch, or hot work permit for installation.

Part Number

JHE-GET-Series

Overview

• Super bright red or green LED light confirms at a glance your heat trace cable is energized
• Easy re-entry for maintenance
• Super bright green LED light with 360° visibility
• Surface mounting using built-in flanges
• Approved for ordinary and hazardous area locations
• Voltages up to 240VAC
• Compatible with up to 4 in (102 mm) of insulation and cladding
• Hot work permit not required for installation

Specifications:

• Maximum Voltage: 240 VAC
• Maximum Current: 32 A
• Lumen Output: 10 Lumens
• Construction: Non-conductive FRP plastic body
• Overall Height: 8.2 in (208 mm)
• Maximum Continuous Exposure Temperature (T5): 212°F (100°C)
• Ambient Exposure Temperature Range: -40°F to 149°F (-40°C TO 65°C)
• Ingress Protection: IP66/NEMA 4x
