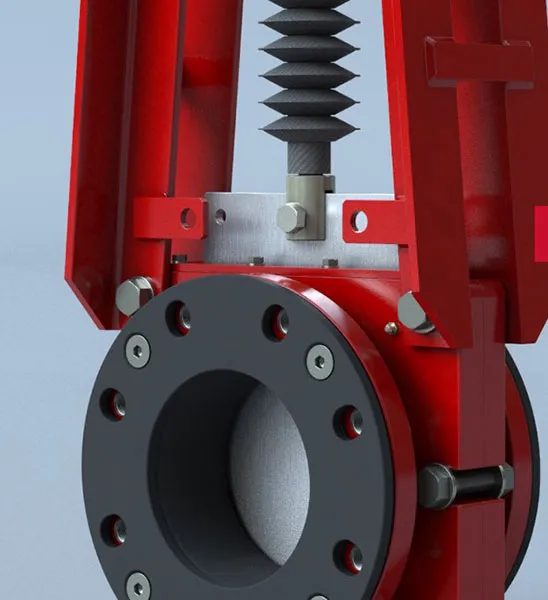

Series 762

Series 762

Features & Benefits

The Bray Series 762 bidirectional heavy duty slurry valve is designed for demanding slurry applications. The design utilizes twin elastomer sleeves and gate designed to facilitate self-cleaning and prevent media build up to ensure bidirectional isolation.

The durable ductile iron body is offered in a two-piece bolted flange style. When fully open, the valve is full bore, offering no resistance to line media.

Features

• Protective stem cover is standard increasing cycle life in hazardous environments
• Unique J-ring steel-reinforced, elastomer sleeve design provides energized, zero leakage shutoff in both directions. Retaining rings included as standard throughout the entire size range
• In the open position, the energized sleeves shield all metal components from direct contact with the flowing process media
• Robust gate designed for slurry applications and available in a wide range of corrosion resistant alloys to meet your application needs.
• Unrestricted flow path with minimal pressure drop achieved through full port valve design for extended sleeve life
• Designed with ample clearance for push-through allowing complete gate closure
• Flanged two-piece bolted body allows for easy maintenance and is drilled and tapped to ASME CL150 flange patterns as standard. Other drilling options available upon request
• Optional bottom flush plate with tapped ports, allowing for safe discharge of media and easy flush water connection
