Embedded Touch PC

PROJECT DESCRIPTION

Design a durable touch screen computer to be used in Commercial Kitchen and Vending Equipment.

Our Solution

BlueSparq designed a 7” display computer or HMI to be used in Commercial Kitchen and Vending Equipment. Since we designed this device, we also control the supply chain. This allows for flexibility in order sizes to meet the customers needs.

Hardware Design

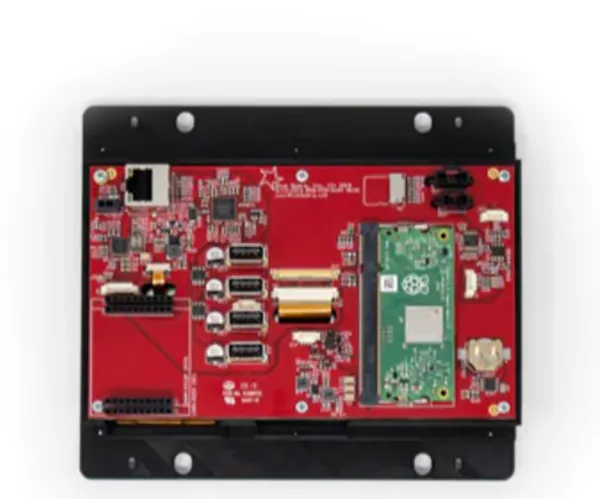

At the core of this device is a Raspberry Pi CM3+ Compute Module. Using Altium designer, we created a carrier board for the CM3+. The carrier board allows for the device to be run on a 12v or 24v power supply. The carrier board has ethernet or wifi connectivity as well as a cellular socket. With the addition of our cellular socket one of our cerftified existing cellular modems can be used to give the device cellular connectivity. The screen of the device is a 7” LVDS touch screen display that is 3mm thick and available with or without a black border.
