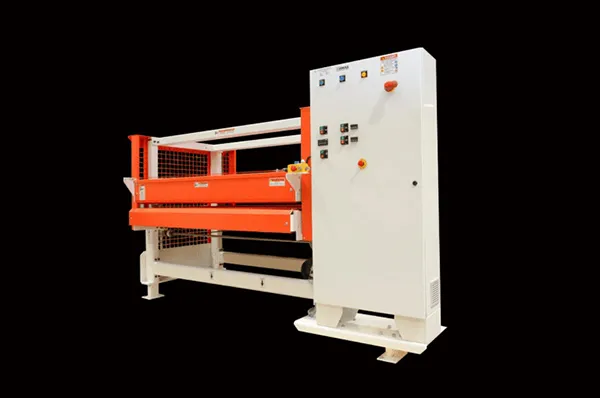

Panel Express heat-assisted rotary laminator

Panel Express heat-assisted rotary laminator

The Black Bros. Panel Express heat-assisted rotary laminator is designed to laminate all types of HPL down to individual parts 44″ long.

FEATURES

• Six driven, single-speed, 7.5” (191 mm) Silicone 70 Duro rolls force out air and nip substrate and laminate together
• Four wide-area radiant heaters raise substrate urface temperature to approximately 150 degrees. Heat accelerates the adhesive cure, reduces moisture
• Single handwheel adjusts mechanical down-pressure and opening height
• Four access covers electrically interlocked allow easy access to rolls and heaters
• Integrated control panel arrangement adjusts heater temperature and controls the main on/off function
• Variable speed drive (10 to 30 fpm/3 to 9.1 mpm)

OPTIONAL EQUIPMENT

Segmented bottom rolls for running countertops or similar material.

Optional components are available to run parts runs as small as 24” (600 mm).
