Bishamon Industries Corporation

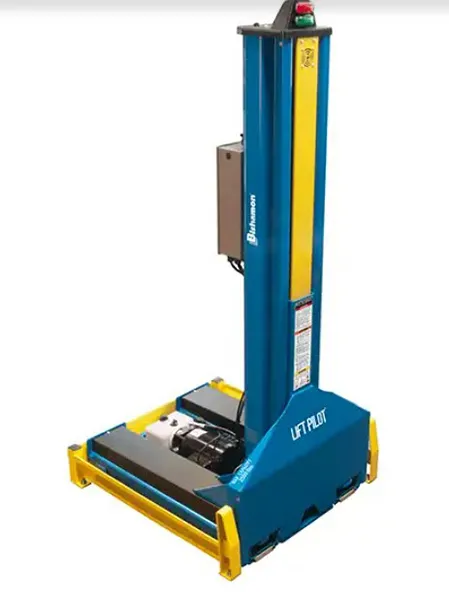

Lift Pilot - Pallet Positioner

The Lift Pilot is unlike any other pallet positioner product in the industry. It is pallet truck accessible and offers totally unobstructed access with no ramps, bumps or obstructions. This compact, obstruction-free design makes pan lifts, “C” lifts, “E” lifts and all other roll-on lifts practically obsolete. The unique space-saving design, the smallest footprint in the industry, gives the operator full access to pallet sides and end for easy pallet loading or unloading, eliminating reach-over
The innovative design of the Lift Pilot incorporates several intelligent features including telescoping forks, pallet presence sensors and a patented, foot-clear, safety system. Operator has full access to pallet sides and end for easy pallet loading or unloading. Handles GMA pallets from the end and CHEP pallets from the end or side. Intelligent design and operator interface: Pallet presence sensors, Highly visible function lights at top of mast & Voice instructions. Designed to operate with the worker in mind. The Bishamon Lift Pilot is truly the next generation of smart ergonomic equipment

• Floor Level Pallet & Skid Positioner
• LIFTING CAPACITY - Hydraulic Capacity = 2500 Lbs @ 24" Load Center
• FORK TYPE - Electro-Mechanically Driven Forks
• SAFETY - Post And Toe Guard Anchored To Floor
• Issued Patents: United States No. 9,963,333; Australia No. 2015355255 And Canada No. 2,969,828. Other Patents Pending.
