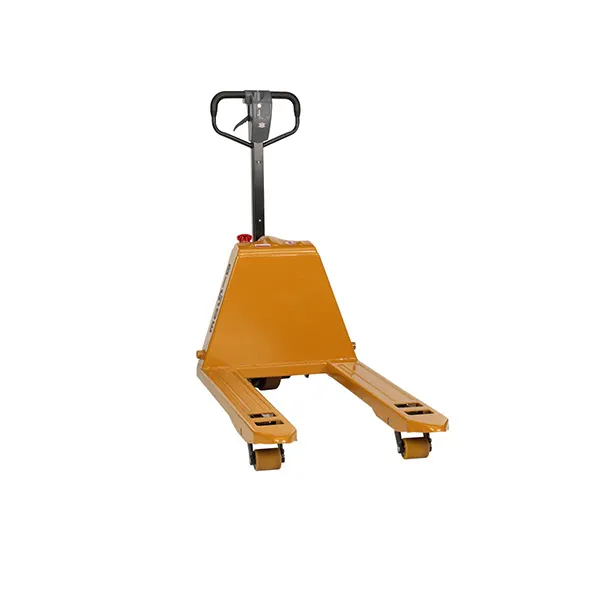

P33 Semi-Electric Pallet Jack
Our 3,300lb capacity semi-electric pallet truck can help to reduce operator strain caused by pulling or pushing loads on a manual hand pallet jack. Single speed powered travel is provided for both forward and reverse, while lifting and lowering is accomplished with a standard manual pump.
THE P33 FEATURES:
• 24 volt DC drive motor and controller
• Electromagnetic disk brake
• Ergonomic handle with safety reversing switch and horn
• 30AH polycase batteries with internal 110VAC charger
• Battery discharge indicator
US patent 754,415
THE P33 SPECIFICATIONS:
• Vehicle Type
Motorized pallet truck with manual lift pumps
• Capacity
3,300lbs. @ 24” load center
• Power
24 volt electric with DC controller
• Max Lift Height
7.5”
• Collapsed Height
3"
• Fork Dimensions
27” W x 45” L standard
• Vehicle Dimensions
62" OAL, 27" OAW
• Turning Radius
56"
• Travel Speed
2.5mph empty, 2.0mph loaded
• Battery Type
Polycase maintenance free
• Battery Capacity
30AH
• Charger
Internal 110VAC plug-in
