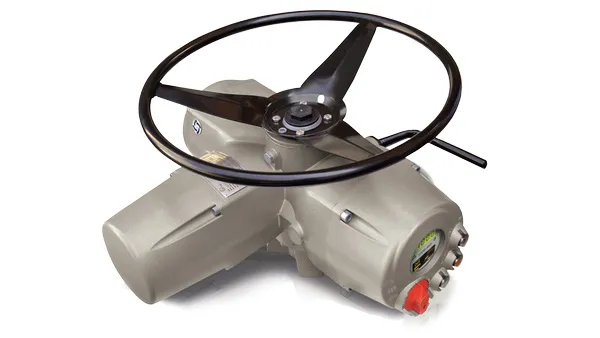

ICON3000 Electric Actuators
ICON3000 Electric Actuators
ICON3000 is a series of smart multi-turn actuators featuring advanced operation, control, setting and maintenance.
Features & Benefits
- Non-intrusive, user-friendly push-button panel for operation, setting, and diagnostics
- Bluetooth™ wireless connectivity
- Advanced maintenance data and alarm reports
- Valve condition monitoring
- Configurable ‘data logger’ function for maintenance and diagnostic programs
- Customized numeric and graphic displays with multiple language options
- Single enhanced terminal block
- High-definition absolute encoder, able to read valve position even without main and backup power
- Contactless digital motor speed sensor
- Advanced open bus communication protocols:
o Lonworks
o Profibus DPV0, DPV1, redundant DPV1, redundant DPV2
o Foundation Fieldbus
o Modbus
o HART
- Water-tight and explosion-proof PDAs available for remote control and setup
- A-Manager software for functional settings and backlog download and analysis
Specifications
General application
The ICON3000 is available in five sizes and is designed for on/off or modulating (up to 1200 start per hours) operation of valves used in heavy industrial, chemical, and petrochemical plants.Approvals
- Water-proof: IP68 or NEMA 4, 4X and NEMA 6
- Explosion-proof:
o ATEX Ex-d IIB T4 (higher explosion-proof classifications available)
o IECEx, FM (US), FM (C), CCC (China), EAC (CIS), INMETRO (Brazil), CCOE (India), KOSHA (Korea), CNS (TAIWAN), ECAS (United Arab Emirated)
- Suitable for use in SIL 3 applications
Technical data
Power supply:
- 3-phase from 208 V to 690 V at 50/60 Hz
- Single-phase from 110 V to 240 V at 50/60 Hz
- DC (Direct Current) from 24 V to 110 V
Torque output: From 30Nm to 1,440Nm
Speed range: From 12RPM to 173RPM at 50/60 Hz
Ambient temperature as low as -60°C (-76°F)
Bluetooth™ is a trademark of Bluetooth SIG, Inc., USA
