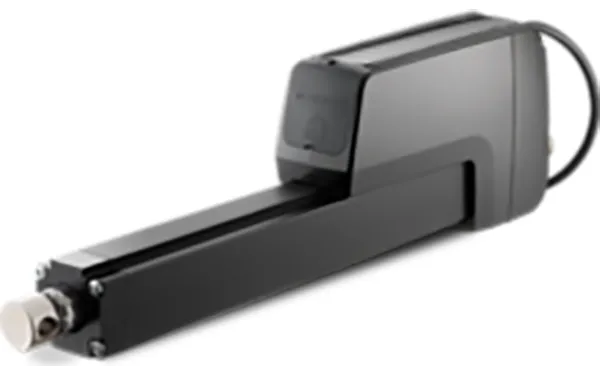

Linear Actuator - Electrak® HD

Linear Actuator - Electrak® HD

The Linear Actuator provides flexible onboard controls, superior performance and unmatched environmental protection. The Electrak HD is a new electric Linear Actuator model with integrated electronics that eliminates the need for independent control . With force options up to 16,000N, it makes it easy to convert your hydraulic systems to electrical ones. Electrak HD Linear Actuator works with high performance even in the toughest environments thanks to its IP69K protection class.

Advantages

• The new Electrak Modular Control System (EMCS) is the foundation of the best onboard controls currently available on electric linear actuator models and includes optional onboard J1939 CAN bus support.
• The feature-rich modular design for all control and feedback options is packed into one easy-to-use, compact body. It improves controllability, saves space and reduces installation time and overall cost.
• The built-in J1939 CAN bus option increases controllability, can eliminate individual controls, and simplifies OEM machine design.
• Electronic trip point calibration provides consistent overload protection.
• Continuous monitoring of critical parameters such as end of stroke, voltage, current and temperature is standard on all HD linear actuaor models.
• Built-in dynamic braking reduces shore at the end of the contour and increases repeatability.
• Optional low-level switching and automatic sleep mode reduce footprint, lower costs and increase circuit isolation.
• Optinal end-of-stroke indicator output for customer use, eg locks.
• Higher power and longer stroke lengths enable the Electrak HD to address applications beyond the range of other electric linear actuator models.
• Higher load ranges up to 16 kN are ideal for hydraulic conversion applications.
• Strokes of up to 1 meter are possible for standard models , strokes up to 500 mm for 16 kN.
• Efficient actuator design, including high-quality ball screw, reduces current draw by up to 20%
• The Electrak HD has been tested to meet and test the toughest OEM mechanical and electronic component acceptance tests on the market today.
• Ratings of IP69K (static), IP67 (static) and IP66 (dynamic) prove that the Electrak HD can withstand the harshest environments.
• Ability to operate in a wide temperature range between -40 °C and +85 °C.
• Withstands 500 hours salt test.
• CE , RoHS and REACH (EU) compliant.
• Integrated manual drive
• Standard anti-rotation activation.
• Integrated thermal overload protection .
• Load lock against deformation of the nut in case of overload .
• Flexible front and rear clevis options.
