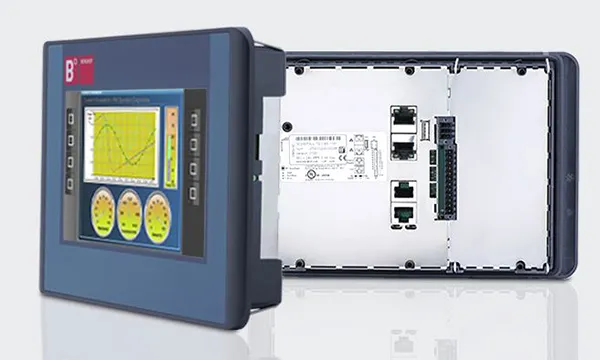

B-Primis DC-Pro
Resistant, bright and extensively equipped: B-Primis DC-Pro from Berghof
Tough and technically convincing thanks to well thought-out solutions from practice for practice: discover the B-PRIMIS DC-Pro dialog controller from Berghof.
Extremely cleanthanks to the continuous, niche-free clean front without edges
Consistently robustthanks to a multi-layer front film structure with high resistance to many chemicals and a particularly torsion-resistant construction of the mechanics in the metal housing
Easy and safe to assemble thanksto integrated retaining clips and twist locks, tool-free/ snap-in installation
Impressive to look atwith the help of bright and brilliant displays (> 400 Cd/m2) as well as brightness that can be adjusted centrally from the control
Berghof B-Primis DC-Pro – Other special features at a glance
- Protected against overload, short-circuit, reverse polarity and overvoltage, wiring errors do not pose a risk
- Residential approval
- Application update via USB
- Application protection via forgery-proof HW identification
- Optional downgrading of the PLC cycle time down to 500μs
- diverse fonts
- Three-wire measurement to compensate for line resistance
- OpenVPN
- VNC + HTML5 web browser can be used universally
- Inputs configurable to counter and encoder
- Control button for resetting/ stopping/ starting the PLC application
- Switchable terminating resistors integrated for interfaces
- External HW watchdog, two-stage
- Analog inputs PT100/PT1000 capable
- Separate voltage supply of the digital outputs in groups
- Serial 9bit multi-drop mode
- hour meter
- Buzzer and optional sound chip for mp3 playback
Safe applicationthanks to solutions from practice for practice:
- remanent hardware memory independent of the real-time clock battery
- integrated temperature sensor monitoring, eg for the control cabinet
- isolated interfaces, and much more.
Overall environmentally friendlythrough energy-saving components and software functions as well as appropriate packaging
