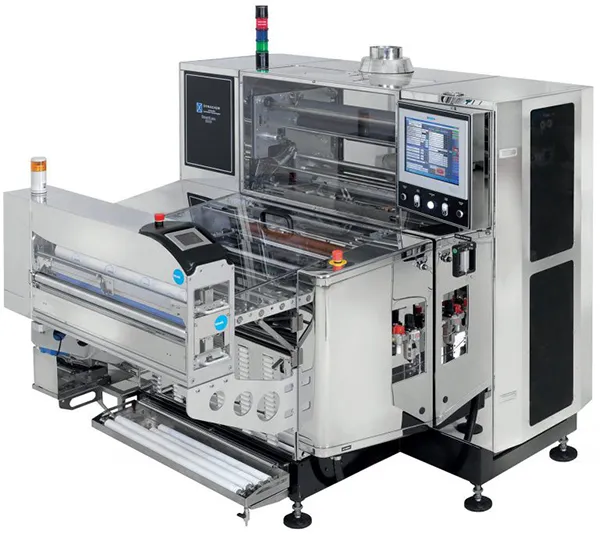

SMARTLAM 5200 Automatic Cut Sheet Laminator

SMARTLAM 5200 Automatic Cut Sheet Laminator

The SMARTLAM 5200 Automatic Cut Sheet Laminator is a high–technology machine, specially designed to laminate a full range of PCB. This unit is capable of handling very thin layers and large heavy thicker panels.

The machine is built in stainless steel mirror type to comply with the most stringent requirements of clean environment.The unit is provided with a data management system to supervise and statistically control the process parameters via proprietary software and it is pre-set for barcode reader.

ADVANTAGES

• Stainless steel construction-suitable for clean room operation Class 1000
• High lamination pressure controlled automatically by proportional valve
• Lamination rolls available in two size length 30” or 24” up request
• Vacuum by venturi system
• Friendly operation – OMRON PLC – operator interface in various languages by industrial touch PC/Display
• Equipped with brushless servo-motor
• Escada software for Statistic Process Control (SPC) – *Proprietary software
• Driven rolls conveyor system by magnetic trasmission
• Semi-Automatic cycle availabe
• Expansion rolls system for dry film 3” or 6”
• MES Capability
• Exit Pneumatic Moveable device for very thin layers
• Dry film roll off-set adjustment device
