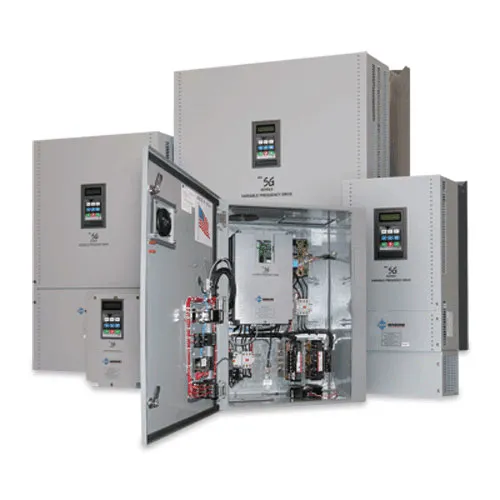

Low Voltage VFDs - SG Series

High Performance Sensorless Vector Industrial Drives.

Benshaw’s rugged, flexible SG Series drives are designed to handle the most demanding variable speed drive applications. SG Series sensorless vector drives are easy to install and configure. Standard drives are web stocked for immediate shipment. All SG Series units feature a flexible power stack with three power ratings.

Key Features:

• Rugged, reliable design

• Programmable I/O

• Integral PID control

• V/Hz or sensorless vector control

• Variable torque, standard and heavy duty ratings

• Start methods: accel, DC start, flying start

• Stop methods: coast, decel, DC inject, flux

• Uploadable, downloadable keypad

• Built-in protection features

• Standard Modbus communications

• Windows-based software

• Integral multiple motor control from one drive for pumping applications

Standard Duty, Variable Torque Rating: The standard duty, variable torque rating allows overloads of 110% for 60 seconds. For most fan and pump applications, energy savings can be optimized by setting the V/Hz pattern to squared.

Standard Duty Rating, Constant Torque Rating: The standard duty, constant torque rating allows overloads of 120% for 60 seconds. Torque can be maintained by setting the V/Hz pattern to linear.

Heavy Duty, Constant Torque Rating: Heavy duty ratings provide a more robust power section for loads requiring higher starting torque and higher peak overloads of 150% for 60 seconds.
