BelGAS, a Division of Marsh Bellofram

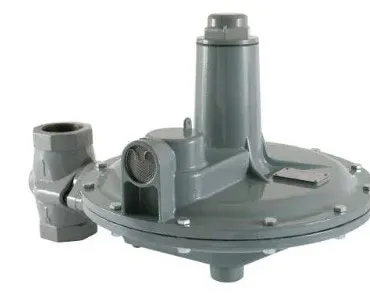

Type P202 Gas Pressure Regulator Head Only

The BelGAS P202 is a relieving, manual, direct acting, self-operating, spring loaded adjustable regulator, used in applications where pressure reduction is required. Its robust construction, including an internal relief valve, allows the regulator to reduce the risk of “shock” from abrupt changes of downstream conditions. This can help prevent safety equipment from prematurely shutting an operation down, resulting in unwanted and costly downtime. Also available in non-relieving version, BelGAS Type P200 pressure regulators allow for high-accuracy regulation of pressures ranging from 2” of water column up to 10 psig, making them ideal for use in applications where wide variations in pressure reduction are also required. The BelGAS Type P200 is offered with choice of ductile cast iron or WCB steel body, both with a lightweight aluminum bonnet. With available port sizes of 1.25 NPT to 2 NPT, and orifice sizes from ¼” to 1-3/16”, BelGAS Type P200 units may also be used as cost-effective drop-in replacements for competitive units, as they occupy an identical footprint to other industry models. They are designed to reliably operate over a temperature range of -40˚F to +200˚F (-40˚C to +93˚C), and are also available in a variety of spring range pressures and colors.
