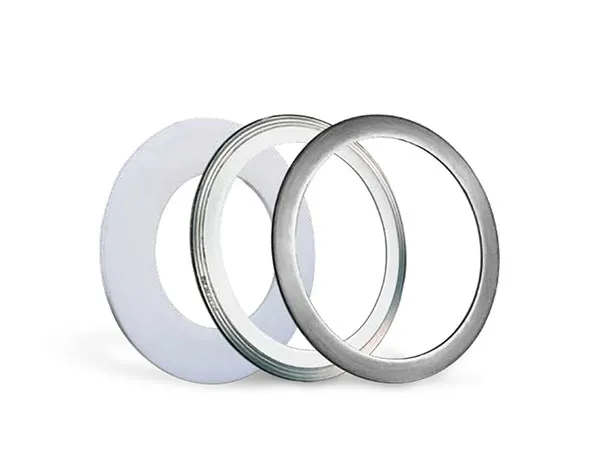

Metal Gaskets
Metal Gaskets
Metallic & Spiral Wound Gaskets
Considered one of the best all-around seals, the spiral wound gasket offers a low-cost solution that has the ability to handle temperature and pressure fluctuations. Multiple plies of metal and filler in the spiral create a barrier that reduces the possibility of leaks.
Garlock offers up examples of the difference-making impact a high-quality metal gasket provides. Garlock Controlled Density™ is found on all 150 and 300 lb. class flexible graphite-filled gaskets and delivers a constant filler density across gasket winding. This leads to a high tightness level achieved with a minimal bolt load.
Graphonic® Metallic Gasket
This line comes in three distinct varieties:
Graphonic Gasket
- Flexible graphite sealing element
- Accommodates a wide range of temperatures
- Effective during thermal cycling
- Withstands API and FITT fire tests
- Chemically resistant
- Long service life
Tephonic® Gasket
- ePTFE sealing element
- Chemically inert
- Forms tight seal under low bolt load
- Conforms to minor sealing surface imperfections
- Withstands temperatures up to 500oF (260oC)
G.E.T.™ Gasket
- Graphite and ePTFE sealing elements
- Combines fire safety with chemical resistance
- Conforms to minor sealing surface imperfections
- Rigid, yet compressible
Heat Exchanger Gaskets
Heat exchanger gaskets are also available in custom configurations. For example, spiral windings can be designed with or without partitions welded to the winding, or inner and outer rings with welded partitions.
Other Miscellaneous Styles
At Beacon Gasket & Seals, we’re dedicated to finding the right part — no matter the configuration — for your sealing needs. We’ll work with you to find the specific style of metal gasket needed to ensure the success of your application.
Additional Metal Gasket Styles
- Corrugated Solid Metal
- Double Jacketed
- Double Jacketed Corrugated
- Double Jacketed Corrugated with Corrugated Metal Filler
- Double Shell
- Single Jacketed
- Single Jacketed Overlap
- Single & Double Jacketed Profile
- Solid Metal
- Solid Metal Profile
- Solid Metal with Flexible Graphite Covering
- Two Piece French Type
