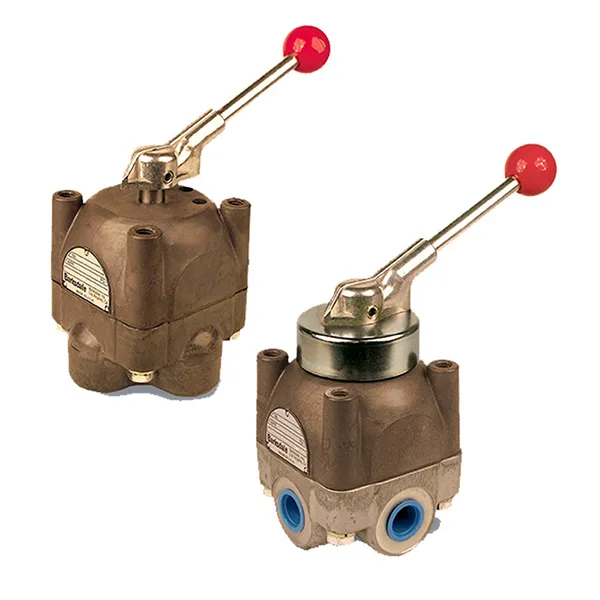

Series 6900, 6940 High Pressure OEM Valve

Series 6900, 6940 High Pressure OEM Valve

High Pressure OEM Valve line up to 3000 psi

Shear-Seal® Manual Control Valve

Description

Barksdale's High Pressure OEM Valve line provides exceptional directional control for fluids up to 3000 psi in the toughest industrial applications. Using Barksdale's Shear-Seal® technology the OEM Valve products offer dependable performance and long life even when the media being controlled is contaminated with debris that would ruin ordinary valves. Different flow patterns are built into this OEM line the "Closed Center-Manipulator", also known as "Float Center", where in the center position the pressure port is blocked and the cylinder ports are open to the return port. Other models features "Open Center-Manipulator" also known as "Open Center" features a flow pattern with the pressure port, cylinder ports open to the return port.

Features

• Original Shear-Seal® technology
• Low pressure drop
• Tolerates contaminates
• Spring return option
• Special flow pattern for OEM designs

Applications

• Hydraulic presses
• Military equipment
• Paper mill controls
• Pipe forming
• Railroad maintenance equipment
