Baertschi Perma Agrartecnic AG

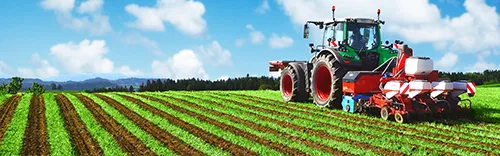

OEKOSEM 4R700-4R750

OEKOSEM 4R700-4R750

Simple and Successful System Oekosem 4r700-4r750

How Rotor-Strip-Till System really works?

The soil in the tilled strip is mixed with the applied fertilizer, finely crumbled and therewith prepared for seeding. The sub-soiling tines which are fitted in between the rotavator knives can be easily adjusted to the desired depth in which the soil is to be loosened. Within the strip, the soil is lifted into the rotavator with the wide wing shares so that the soil is settling back down a little after the rotavator has passed. This is to avoid any hard-panning through smearing of the rotavator. At the same time, this stimulates strong root growth and a penetration of roots into even deep layers of the soil.

With the Oekosem 4R700 the 4 rows are spaced 70 cm apart. The working width is thus 280 cm, the working depth of the grubber can be set between 20 and 35 cm. The working depth of the cultivator is between 7 and 15 cm.

On the Oekosem 4R750 the 4 rows are spaced 75 cm apart. The working width is thus 300 cm, the working depth of the grubber can be set between 20 and 35 cm. The working depth of the cultivator is between 7 and 15 cm.
