Backer Hotwatt

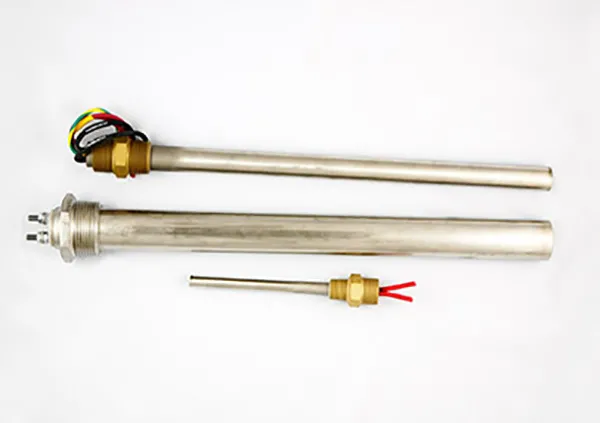

Immersion Heaters

Immersion Heaters

Immersion Heaters are a common heating solution that are used to heat a variety of liquids including water, oil, chemicals and inert gases. Hotwatt provides a full line of energy efficient spec and custom manufactured heating elements for a broad variety of heating applications including:

Heaters are designed to meet optimal heat transfer for heating liquids to meet low to high temperature needs.

Description

U.L. Recognized – E56973C.S.A. Certified – 16386-0-000

Features

• The Backer Hotwatt Immersion Heater may be supplied with various junction boxes for additional terminal or lead protection.
• For corrosive environments, units can be supplied in other special alloys best suited to the operating conditions.
• The lead end of the unit may be sealed for extreme environmental conditions.
• Units may be supplied for three phase or three heat operation.
• Made in U.S.A.

Construction

• Welded end.
• Mica.
• Magnesium oxide packing.
• Element wire situated in close proximity to outside surface for maximum heat transfer and minimum internal temperature while preserving good dielectric qualities.
• Series 316 stainless steel sheath.
• Mounting bushing.
• Ceramic cap.
• Flexible stranded nickel alloy insulated leads or rust resistant post terminals.
