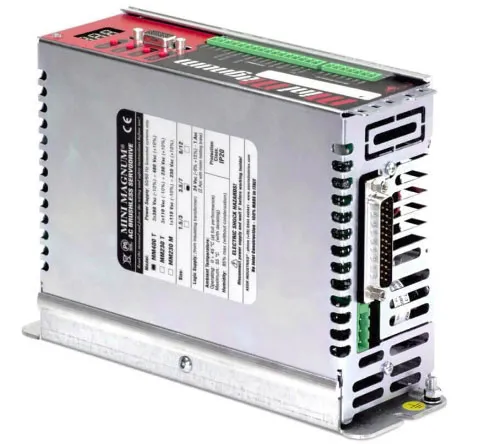

Universal Servo Drive-Mini Magnum

Digital brushless servodrive with 100-480Vac mains supply, for motors up to 7.5Nm.

A truly versabile servodrive, ideal for any application. It can be configured

to control any brushless servomotor and is optimized for combination with the SSAX series.

FEATURES

• Sine wave B.E.M.F. & current

• SpeederOne.1 interface and control software

• RS232 port for PC

• RS232 to CANbus multidrop

• Display & 4 buttons for settings

• Built-in EMC filter and inrush circuit

• Braking circuit with built-in resistor

• Boosted external braking resistors

• Dynamic braking for Powercut

• Holding brake management

• Safety enable function

• 9 digital inputs & 2 digital outputs

• 1 OK relay output

• 2 analog outputs

• Scalable emulated encoder
