Avalue Technology Inc.

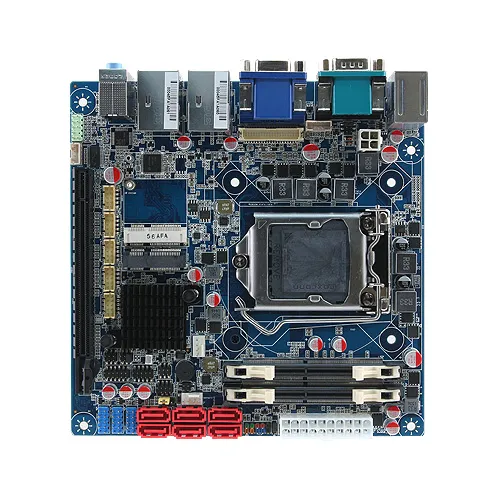

Industrial Motherboard Mini-ITX EMX-Q170KP

EMX-Q170KP supports Intel® 7th Generation Core™ Processor (Max. TDP at 95W) and Intel® Q170 Chipset. It supports RAID 0, 1, 5, 10 and TPM 2.0AT/ATX Power. It has 1 x Intel® I219LM Gigabit Ethernet PHY and 1 x Intel® I211AT PCI-e Gigabit Ethernet. EMX-Q170KP supports Onboard Infineon SLB9665, 2 x 260-pin DDR4 2133MHz SO-DIMM supports up to 32GB, Realtek ALC892 HD Audio Codec, and VGA, HDMI, DP, Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS).

Characteristics:


• 5 x SATA III, 1 x SATA III or 1 x mSATA III switch by BIOS
• 1 x PCI-e x 16
• 1 x Full Size Mini-PCI-e with mSATA Support (SATA III)
• 1 x Half Size Mini PCI-e
• 4 x USB 3.0, 8 x USB 2.0
• 1 x PS/2 Keyboard or Mouse with Dual deck USB 2.0
