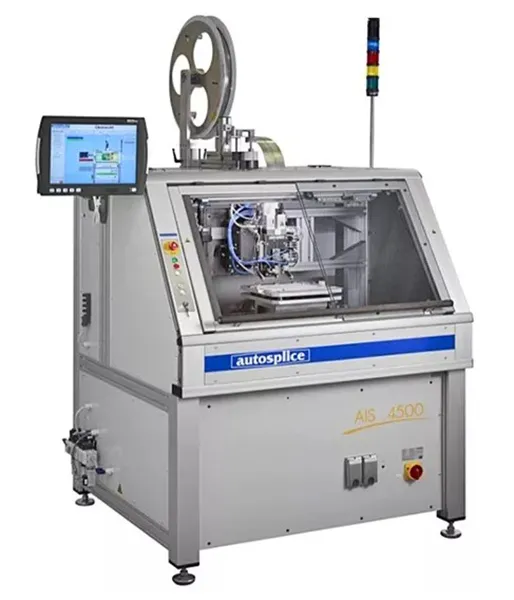

AIS 4500 high-speed pin insertion machine

For your high volume production needs, Autosplice offers the AIS 4500 high-speed pin insertion machine for both single PCBs and multiple boards.

High speed insertion of through hole pins or stamped terminals into printed circuit boards can reduce the high cost of manual connector placement. Fast yet compact pneumatic heads can be quickly changed to insert different components.

SPECIFICATIONS

•  Insertion Area in mm X 250 / Y 250
•  Application Size in mm X 270 / Y 250
•  Insertion Time:      Pin 0.7 sec./component

Tab 1.0 sec./component

•  Interface Touch Screen Panel with industry PC
•  Insertion Heads max. 1
•  Compressed Air 6 Bar
•  Power supply 400 V / 50 Hz / 16 A
•  Level of noise: less than 75 dB
•  Dimensions in mm (L x W x H) 1170 x 1010 x 1763
•  Tool protection sensor
•  CE compliant

OPTIONAL FEATURES

• Rotary table
• Insertion force measurement
• Auto correct function
• Barcode reader
• EMC protection
• Bending station
• Post pushing station
• Badmark detection
• Remote controll service
