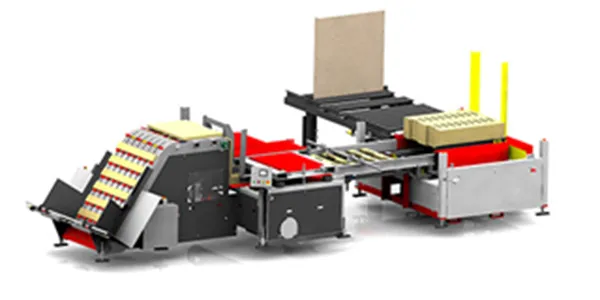

KA Notcher

High volume production of notched stringers

The compact footprint and rugged construction of our KA Notcher is ideal for positioning inline behind your trim saw. We designed and built it for your high-volume production, then optimized it for throughput and flexibility with cutting paths are adjustable to handle various board dimensions.

Features

• Dual heads cut a ½” or 1 ½” radius by 9.00” wide notch at a rate up to 6300 boards per hour
• Simple machine maintenance—material hold downs lift off for ease of cleaning
• Dual side 10” diameter vacuum connection allows for swift evacuation of wood particles
• Programmable on/off control for upstream equipment promotes safe operation

Options

• 10” wide notch
• “On the Fly” adjustable depth pusher (1” – 4”)
• Adjustable pusher speed (4000 – 6000 BPH)
• Auger assist vacuum
• Stack light
• Audible alarm

Supplemental Equipment

• Unscrambler with grading deck
• Infeed board handling conveyor
• M2L Board Stacker
