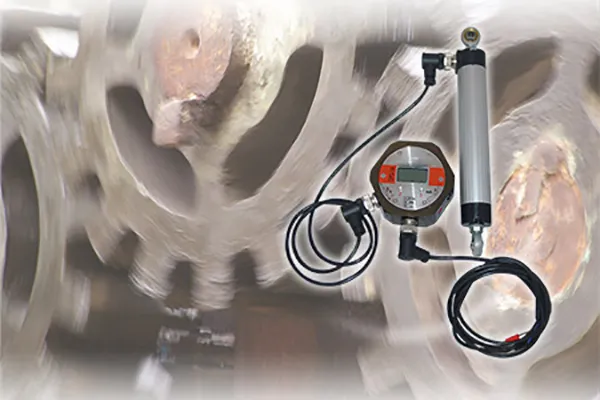

DPG - 1A - Position and Displacement Transmitter
Linear transmitter from 4 to 20 ma, used to perform displacements, valve positions, damper positions, guillotines, grinding roller displacement and track displacement of diffusers.
It uses an advanced technology, "conductive plastic resistive element", allowing a robustness of more than 100 million cycles without deterioration and without adjustments.
The DPG-1A is designed to allow installation and robustness in addition to a simple and intuitive programming.
The DPG-1A has a display for field visualization of the necessary variables.
TECHNICAL DATA
Power
10 to 30 VDC
Type of output
From 4 to 20 ma (two threads)
Degree of protection
IP65
Parametrization
By magnetic key
Linearity
Better than 0.6%
Display
6 segments - Indication mm,% and output signal
Cursors (mm)
75, 100, 150, 225, 300, 360, 450, 500, 600, 750, 1000 and 2000
