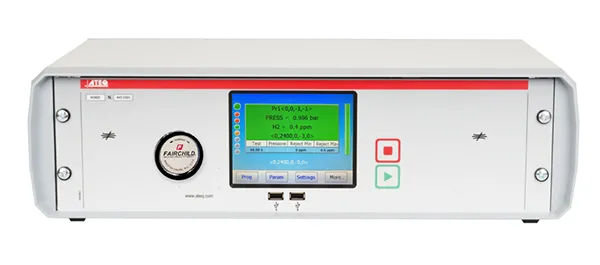

H5800 – TRACER GAS LEAK TESTER

H5800 – TRACER GAS LEAK TESTER

The H5800, a newcomer in the ATEQ range of leak detectors, is one of the finest tracer gas and hydrogen leak detectors on the market today. Works well for parts that are hot, flexible or have testing specifications that are too small to test with air.

The most cost-effective solution when you want to identify leaks in gr/year or ppm. The H5800 is equipped with a touchscreen interface and features for easy integration.

H5800: APPLICATIONS• Automotive: Leak localization, cooling systems, alloy wheel, weld, diecast…• Medical: Rubber diaphragm…• Domestic Appliances: compressor, …

H5800: FEATURES• Digital pressure surve• Generated Suction Flow control• Vacuum pre-test (gross leak)• Detection of leaking gas traces – Range: 5~ 100 ppm• 32 programs• 7 inputs/ 5 outputs• Automatic measurement cycle

H5800: SPECIFICATIONS

• PHYSICAL
• 3U Rack
• ELECTRICAL SUPPLY
• 24 V DC – 2A
• TEMPERATURE
• Operating : + 10°C to + 45°C
• Storage: 0°C to + 60°C
• INTERFACE
• Graphic touchscreen with simple andintuitive menu-driven operator controlsaviguation Keys
• ELECTRICAL CONNECTORS
• 3 pin – plug (2P+T)
• PNEUMATICAL CONNECTION
• 2,7/4 and 4/6
