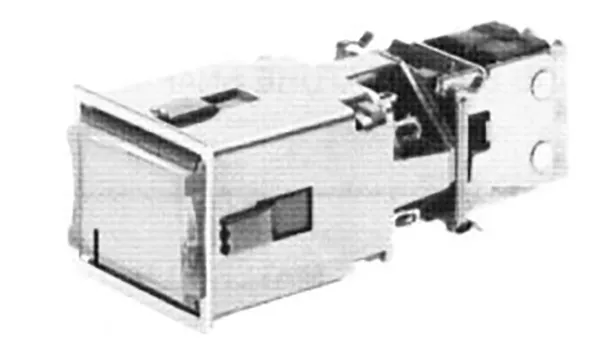

The 9-9M-9H SERIES ILLUMINATED PUSHBUTTON CONTROLS & INDICATORS

Introduction

The 9/9M/9H SERIES ILLUMINATED PUSHBUTTON CONTROLS & INDICATORS are designed for panel mount applications. The 9 Series is the commercial version. The 9M Series is a military version designed to conform to MIL-PRF-22885/9 thru /13 & /85. The 9H Series is a military version designed for high shock applications and conforms to MIL-PRF-22885. A lens locking tab and high shock clip are employed to secure the assembly. All of these switches and indicators are available with multi-colored illumination and many types of lens engraving formats. They feature four-bulb illumination and nine different circuit configurations allowing display customization. The pushbutton control units are also available with two or four pole switch modules with either momentary or alternate action function. All parts are easily replaced or interchanged.

Easy Build-A-Switch

Build-A-Switch allows you to mix and match options to create the switch you need, simply select the desired option from each category. Most available options are shown and described on the following pages. Complete HOW TO ORDER information is at the end of the section. Hardware and accessories are available separately or with completed units.
