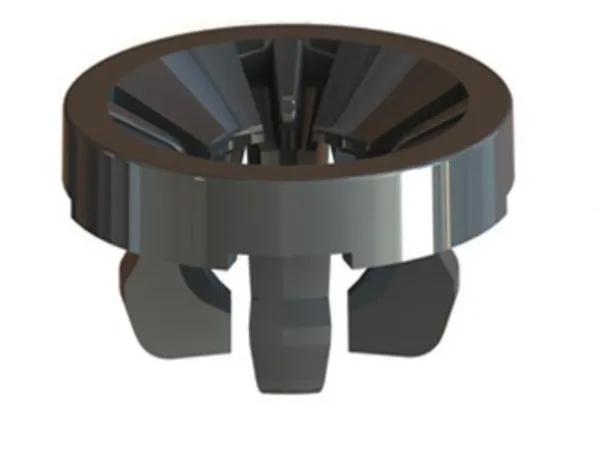

Through Hole Push-In Ball Socket

Uses:

• Headlamp, fog lamp reflectors and LED light modules, brackets or housings

ASYST Technologies Benefits:

• One piece "Push-In" assembly, simple mating tool geometry (Installs into Ø16mm hole in 3mm thick panel)
• Capable of being assembled in a manual or automated process
• Low profile design fits in tight spaces
• Combination low insertion force (125N Max) and high pull-out force (440N Min)
• Allowable rotation of ASYST Standard Ball Stud: 18° all directions
• Micro SIBS HP available for small packaging space (Installs into Ø9.6mm hole in 1.8mm thick panel)
