Artila Electronics Co., Ltd

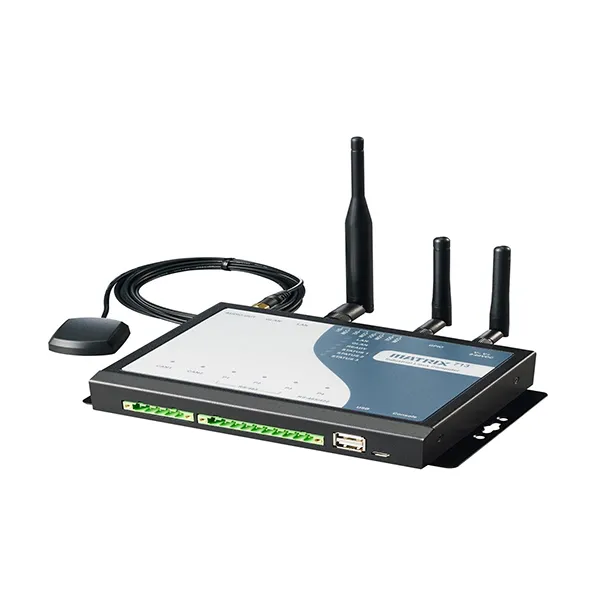

Industrial Box Computer Matrix-713

Artila’s Matrix-713 is the mobile fanless & wide-temperature IoT Gateway that helps to meet the increasing demand for high-speed mobile internet. It is the Single Port Serial-to-Wifi gateway available on the market.
Focusing on mobile computing field, Artila provides Matrix-713 as gateway system, which is a fanless Linux-ready Cortex-A5 Industrial Box Computer suitable for the mobile computing, integration and control needs such as Vehicle and smart factories.

Matrix-713 provide a series of optional I/O interfaces including isolated RS-485 Serial ports, CAN and digital I/O, Gigabit Ethernet ports that can be used to flexibly connect with various equipment and systems already existing on the field. It is designed for harsh environment, a wide operating temperature range from -20 to 80°C, provide rock-solid, industrial-grade performance. Also, it offers a miniPCIe slot that can be easily deploying RF modules to achieve wireless network communication and position such as LTE/4G, 3G, Wifi, BLE, Lora…etc.

Characteristics:


• Rugged Design, Wide-range Temperature operating
• ATMEL ATSAMA5D35 536MHz Cortex-A5 CPU
• Linux kernel 4.9.x with file system
• Support Node-Red , the browser-based flow editor
• 512MB LPDDR2 SDRAM
• 8GB eMMC Flash and 8MB DataFlash for system backup
• 1 x Micro-SD socket
• 1 x Gigabit Ethernet and 1 x 10/100Mbps Ethernet
• Rich I/Os: 4xisolated RS-485, 2xCAN, 2xUSB,2xDI, 2xDO
• Support GNSS (GPS&Glonass), Gyro, G-Sensor, e-Compass
• 2xminiPCIe slot & 2xmicro-SIM card socket reserved

Matrxi-713 Key Features:


• High Ability IoT Gateway
• Flexibility
• Rugged Reliable Device
• Information Smart
