ARC-11D SAND CONTROL SCREEN MANUFACTURING

ARC-11D SAND CONTROL SCREEN MANUFACTURING

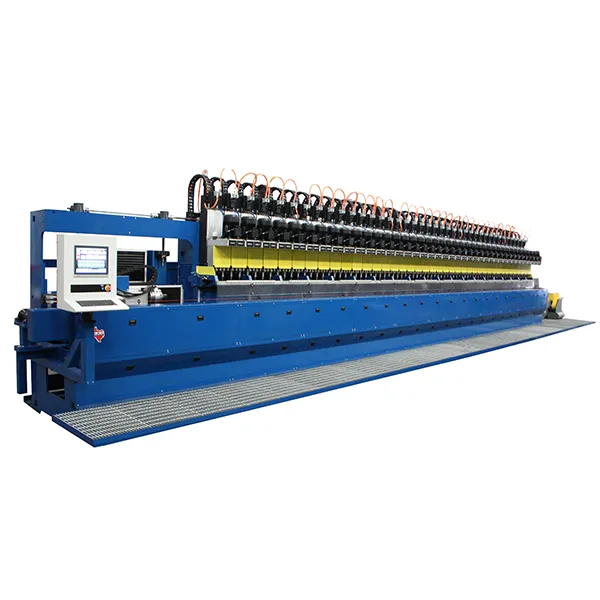

The ARC-11D Drilling Machine consists of a reinforced steel base that supports a servo-driven vertical lift bed. The lift bed supports the perforated pipe as well as a servo-driven headstock with a self-centering 3-jaw lathe chuck. Headstock centerline adjustment and pipe horizontal positioning are completely programmable and are servo-controlled for accurate drill positioning. The machine bed has an integrated coolant recovery system that runs the length of the spindles. The multi-head drilling system incorporates 36 spindles attached to a reinforced backplate.

Features:

• PLC Controls
• Oper/ag Patterns
• 36 Drill Spindles (Optional 72 drill bit configuration)
• Cooling System
• Full-Length Chip Conveyor
• Air Hydraulic Spindle Feed (Optional Servo Feed)
• Flood Coolant for each Spindletor Pendant with LCD Color Display
• Multiple Programmable Drillin
• Servo Driven Lift Bed
• Servo Driven Pipe Rotation
• Servo Driven Pipe Shift
• Servo Driven Lathe Chuck Centerline Adjustment
